TRACK TEST: Validating FactionFab Braking Performance with Garmin Catalyst Data at Thunderhill West

Introduction: The Laguna Seca Wake-Up Call

If you track a modern performance car, you know that dreadful feeling: the sickening moment when the brake pedal goes "mush" halfway through a high-G braking zone. For us, that wake-up call arrived at WeatherTech Raceway Laguna Seca. Despite the iconic "Corkscrew" generating the headlines, it was the heavy braking zones into Turns 2 and 5 that ultimately "melted off" our stock braking setup. The stock components simply couldn't handle the thermal load generated by repeated high-speed decelerations. This offered an opportunity to test a solution that offered higher heat capacity without sacrificing streetability.

We installed our FactionFab Pad and Rotor Combo, which consist of the V2 Slotted High-Carbon Rotors paired with the V2 Performance Brake Pads, onto a 2022 VB WRX. This combination is designed for aggressive street and light track use—precisely the hybrid duty cycle required.

The Theory: Engineering Heat Management

The core challenge in braking isn't "stopping power" (your tires and ABS usually manage that limit), but thermal management. When kinetic energy is converted into heat, standard "blank" rotors can saturate and "outgas." This outgassing creates a thin layer of hot gas between the pad and rotor, causing the catastrophic loss of friction known as brake fade.

Our components attack this with an approach rooted in material science:

1. FactionFab V2 Rotors (G11H18 High-Carbon Alloy)

The critical upgrade here is the material. Our V2 rotors use a High-Carbon (G11H18) alloy. Compared to standard grey iron, high-carbon alloys have superior thermal conductivity and dampening characteristics. In theory, this means the rotor can soak up more heat and, crucially, transfer that heat away from the friction surface and into the cooling vanes more rapidly. The precision directional slotting on the face further assists by creating pathways for pad gases and dust to escape, keeping the friction interface clean.

2. FactionFab V2 Brake Pads (Advanced Metallic/Ceramic Compound)

These pads are designed to operate at higher temperature thresholds than stock pads. The compound maintains a consistent coefficient of friction (\mu) deep into the 1,000°F+ range where street pads fail. Crucially, they achieve this without the harsh rotor abrasion or excessive noise typical of aggressive full-race endurance pads.

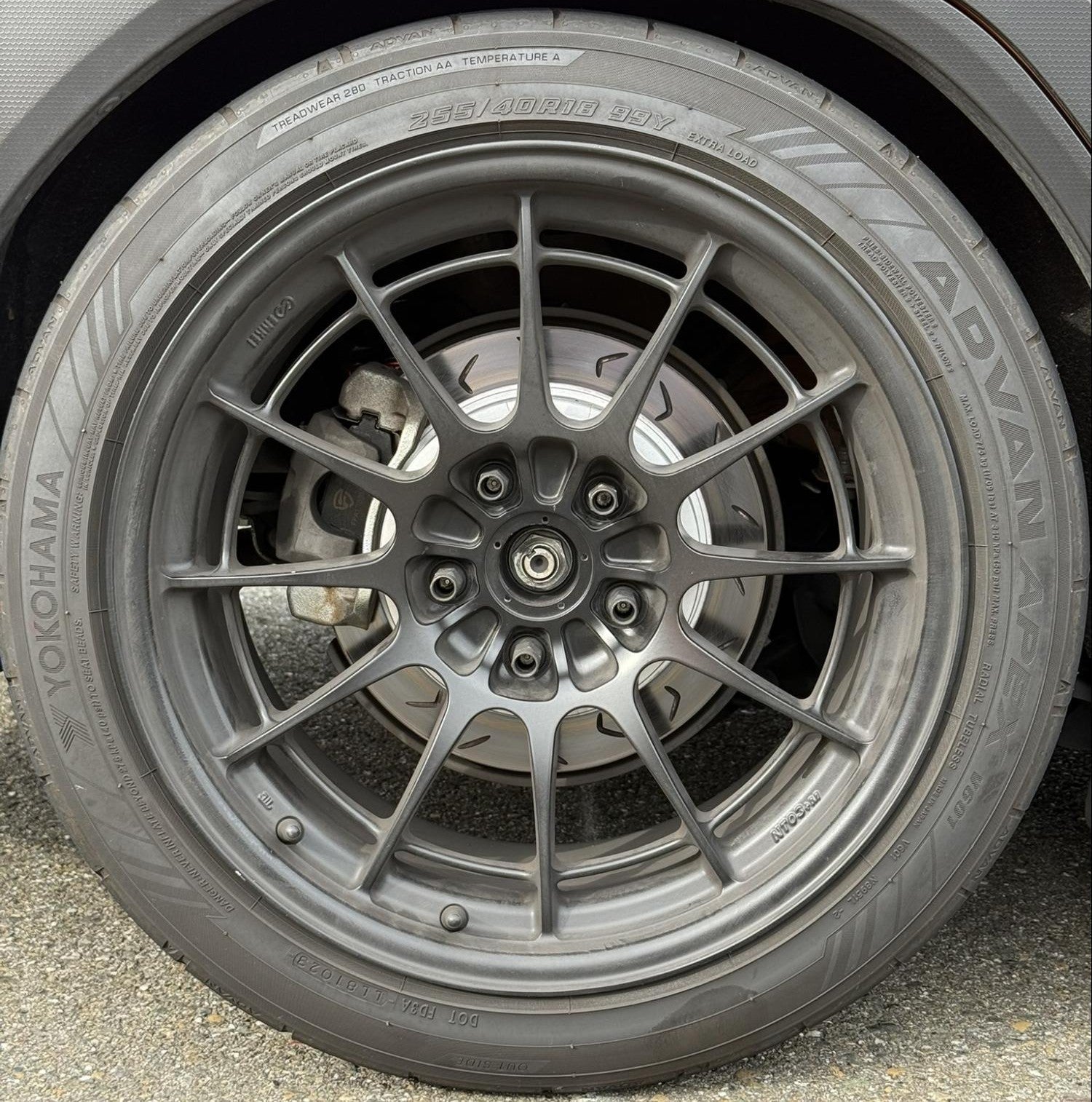

Combo of the FactionFab V2 Rotors and V2 Brake Pads

The Test: Validating Theory with Data

To prove the theory, we looked to our Garmin Catalyst. While we used its real-time coaching features, our primary interest was the unit's high-frequency accelerometer. This internal G-Force Meter would be our neutral arbiter, quantifying the longitudinal deceleration (braking force) generated by the new setup.

Our test venue was Thunderhill West, which we had been to with the stock brake pads last year, and now in March with the new brake setup. Known for its technical complexity and continuous transitions, the "West" course provides a different thermal workout compared to Laguna Seca. Instead of massive 130+ MPH stops, it demands repeated, rapid-fire trail-braking events.

We executed multiple 20-minute sessions throughout the day, logging data and, more importantly, feeling the difference.

The Empirical Results: What the G-Meter Revealed

The FactionFab hardware both felt better, and the Garmin Catalyst G-Meter provided definitive proof.

1. Peak Braking Performance: Breaking the 1.0G Barrier

The most immediate takeaway from the data summary was the increase in Maximum Longitudinal Deceleration.

• OEM Baseline: On similar tires, our previous best maximum deceleration hovered right at 0.9g, representing the limits of the stock pad's friction and the associated thermal limits.

• FactionFab Upgrade: With the FactionFab pads and rotors, we consistently hit peaks just over 1.0g in the primary braking zones. Moreover, we started triggering ABS which shows that we were hitting the limits of the tire, not the brake pad. This represents a measured ~10% improvement in peak braking force, validating that the compound provides significantly higher "bite" and a superior friction coefficient.

2. Steeper G-Force Slope (Time-to-Peak)

Even more telling than the peak number was the shape of the G-trace graph (decoding the slope of the curve).

• The Difference: The Garmin Catalyst data showed that the FactionFab setup achieved maximum deceleration significantly faster than the stock setup. This "steeper slope" on the G-trace validates the immediate initial bite and response of the FFA compound, directly counteracting the "mushy" feeling experienced before.

3. Absolute Thermal Consistency (Zero Fade)

This was the primary metric needed to validate the Laguna Seca failure was a thing of the past.

• The Test: We compared the longitudinal G-trace from Lap 2 against Lap 10 of an afternoon session.

• The Result: There was no perceptible degradation in the braking G-trace as the sessions progressed. While the OEM setup would have shown a "decay" (a shallower curve and lower peak Gs later in the session), the FFA high-carbon rotors maintained their thermal stability. The braking performance at the end of a hard day was nearly identical to the first session. The pedal travel remained firm, and the dreaded soft "fade feel" never returned.

The Subjective Driver Experience: Confidence-Inspiring

While the data provided the "what," the driver feedback provided the "why" that truly matters.

The absence of brake fade had a massive effect on driver behavior. "Confidence-inspiring" was the phrase of the day. Knowing the FactionFab brakes were not going to wilt under pressure allowed us to consistently push deeper into braking zones, optimizing lap times in ways that the Garmin Catalyst "Opportunities" feature immediately highlighted. The brake pedal maintained its linear response, especially later in the track session, providing predictable control during critical trail-braking maneuvers.

The Verdict: True Hybrid Performance

The final data point came on the drive to and from the track. Track pads are notorious for their aggressive cold manners—requiring heat to work, being excessively loud (squeaking), and generating heavy dust. The FactionFab V2 brake pad compound proved its worth as a true hybrid solution. On the drive home, they were quiet and behaved like a refined daily driver.

This ability to drive with them to the track, execute multiple fade-free sessions with higher braking power, and then quietly drive home without a pad swap makes the FactionFab V2 Rotor and V2 Brake Pad combination a potent and validated upgrade for any serious track enthusiast. We have the G-Meter data to prove it.

FactionFab Pads and Rotors are available at authorized dealers.
